Jump Sensor Light Blanket Tester Real time Data Monitoring Force RSI Ground Contact Time Measurement Jumping Device

More Than Just "Height Measurement" – It's Your "Sports Data Steward" The Vertical Jump Light Carpet is not just a simple tool for "measuring height with a jump"; it's more like a portable "mini sports laboratory". It can turn vague judgments like "how high you jump" and "how fast you react" into specific numbers, making training effects visible and optimizable. Whether you are an enthusiast of sports that require frequent vertical jumps such as basketball and volleyball, looking to improve your on - court explosive power; a fitness enthusiast wanting to monitor the progress of lower limb strength; or even a sports student or athlete in need of systematic training tracking, this product is suitable for you. There's no need for complex venues or professional personnel. Just lay out the light carpet in the gym or the living room at home, jump a few times, and you'll get key data. It helps you say goodbye to "training based on feeling" and use scientific data to guide your next training steps.

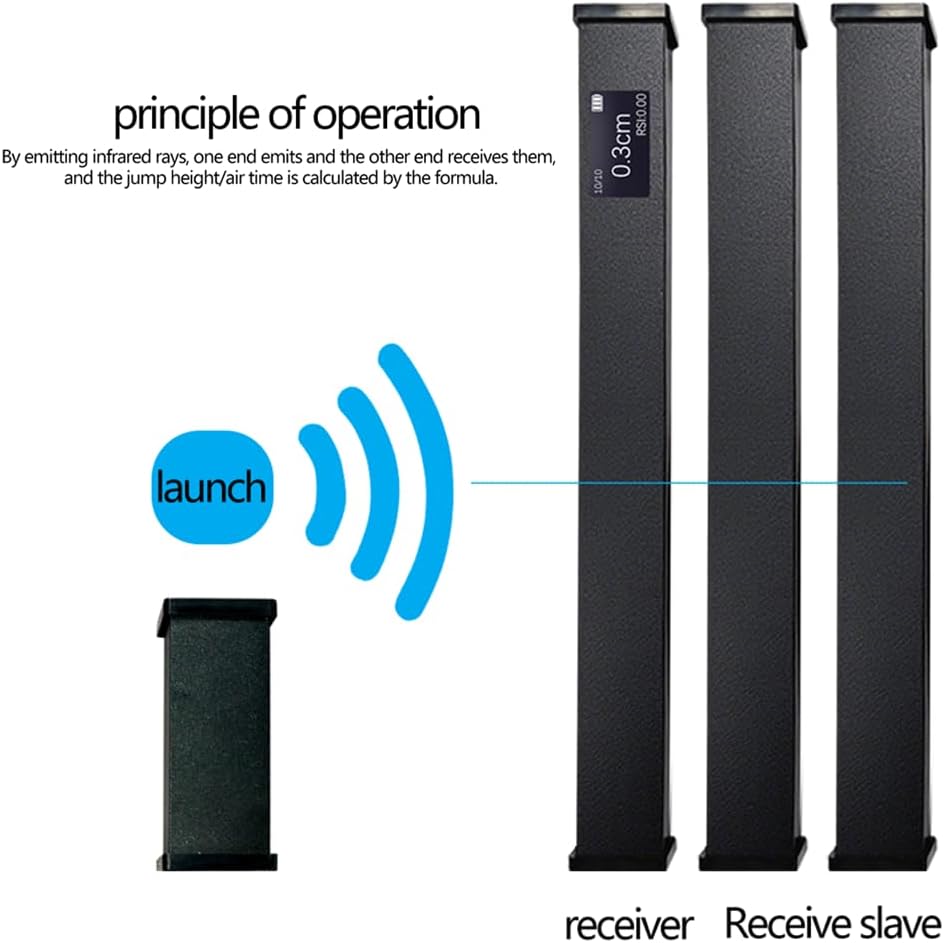

• Working principle: Infrared sensing captures motion trajectories, algorithm models calculate core data
• APP:Search for 'FightTech' in the App Store and Google store After opening the APP, you need to grant the mobile phone Bluetooth and GPS positioning permissions to connect successfully
• Power On/Off：It is a mobile power switch, no automatic power - off function, and manual power on/off is required throughout the process.
• Assembly and Use：Align and insert according to the interface at the splicing part. Place the transmitter and receiver on a flat ground respectively, with the distance between them controlled at 1 - 2 meters, and the optimal distance is 1.5 meters. This avoids insufficient detection range due to too short a distance or affecting the stability of the infrared signal due to too long a distance.

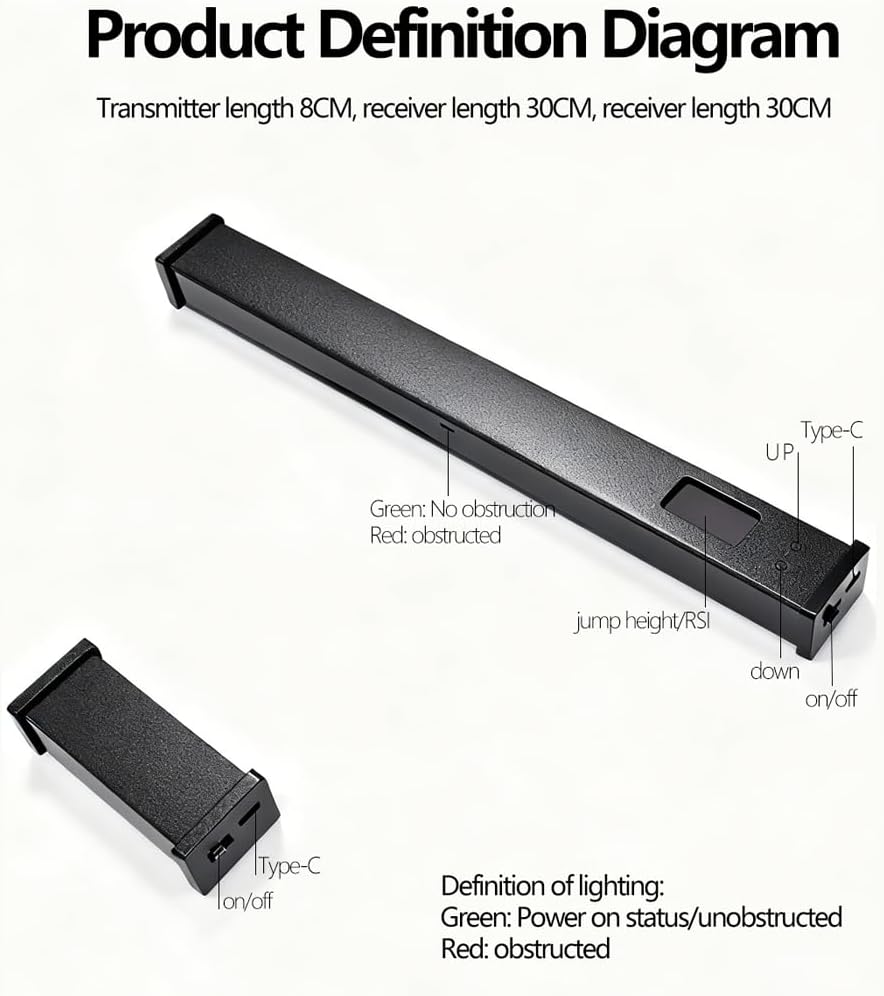

• Light Indicators:Power on: White light Red light: Indicates that the transmitter and receiver are aligned and the human body is sensed Green light: The user is jumping during training
• usage scenario：Track and field events/obstacle sports/physical fitness tests/special training Key tests：RSI test/ground contact time measurement/jump power
• data：Supports saving records and exporting positional accuracy：+-1CM service frequency：1000HZ usage mode：Offline or APP
• Receiver screen usage tutorial: Based on the direction of the screen text: Short press the up key to record the previous high jump height data. Short press the down key to record the next high jump height data. Only up to 10 data points can be displayed. Move the power on/off button to use offline. The placement distance is between 1 and 2 meters, preferably 1.5 meters. Place it in the direction indicated by the arrow and with the screen facing up

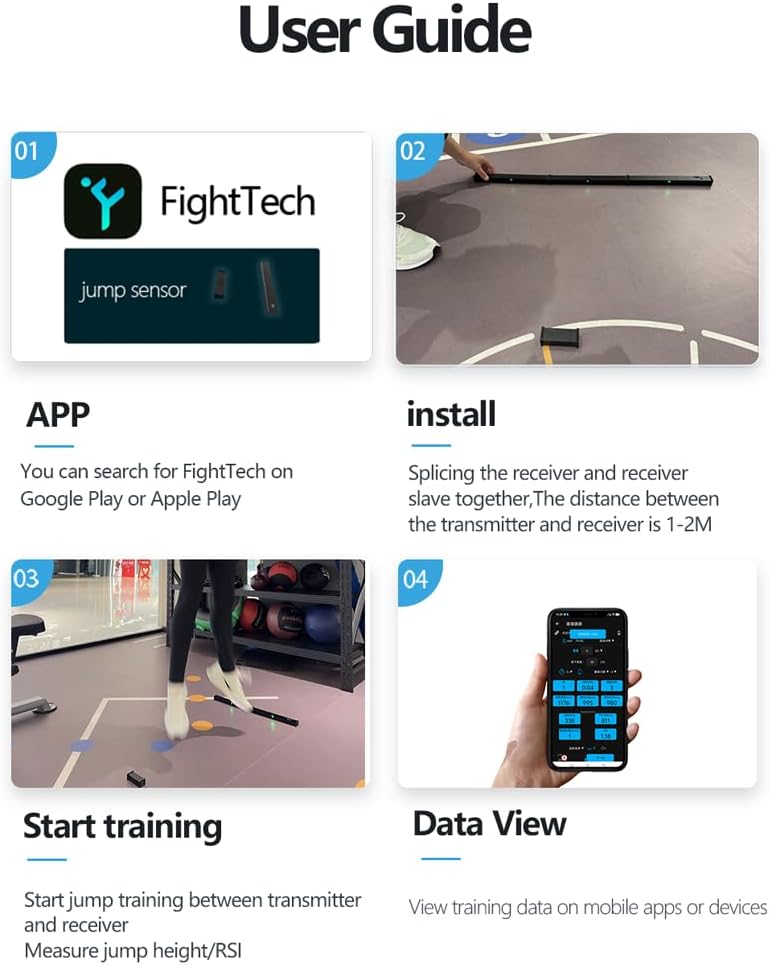

• Online APP usage tutorial: 1: Download APP: Download the APP according to the download address, and you need to enable Bluetooth and GPS positioning permissions on your phone 2: Mobile power on/off: Enter the APP to select the longitudinal jump light blanket function mode, automatically connect or manually connect in the upper left corner 3: Connecting devices: The white indicator light indicates that the device is turned on (the red light is obstructed, while the green light is unobstructed)
• 4: Parameter settings: Set basic parameters and bind users 5: Data saving: Save data after training is completed
